Electronic warfare (EW)

Universal electronic warfare (EW) that can be used at positions or transport. The system jamming drones fpv (with clover antennas) and Mavic (with patch antennas). Each equipment includes 1) suitcase with electronics and battery, 2) separate unit with antennas and jamming modules, 3) device for indicating system operation.

Products

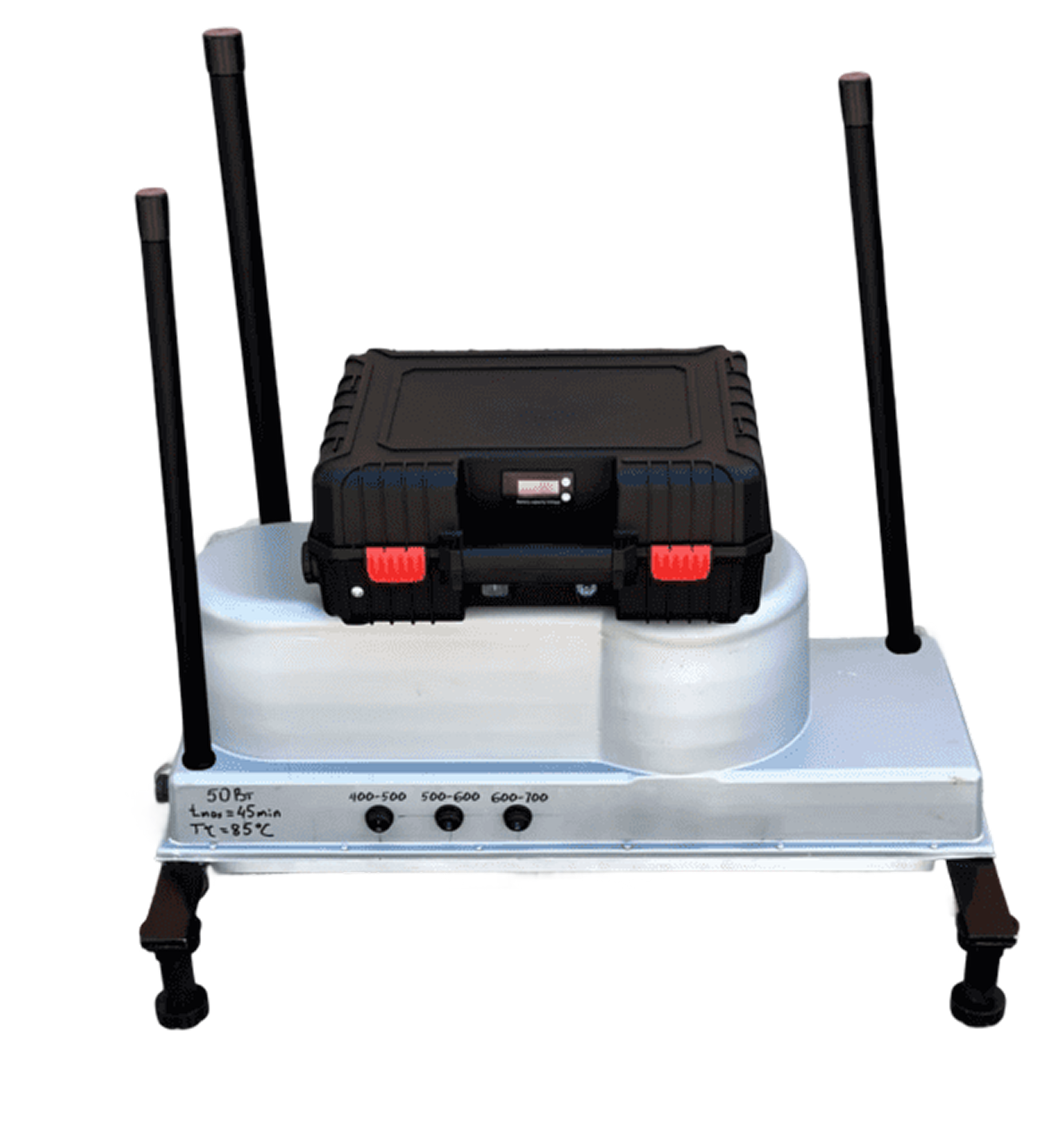

Horten-3 modules, 90.000 UAH

Frequency range, MHz	Power, W
300-400	50
400-500	50
500-600	50

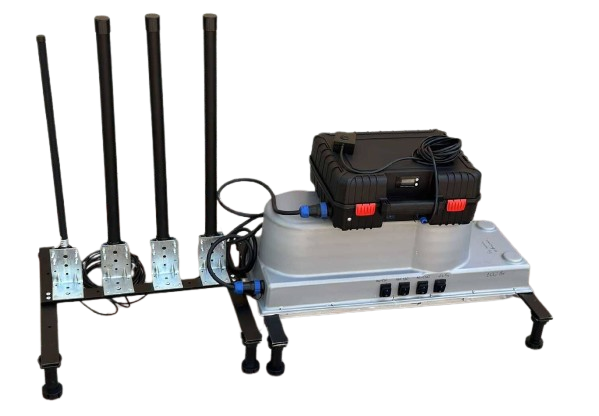

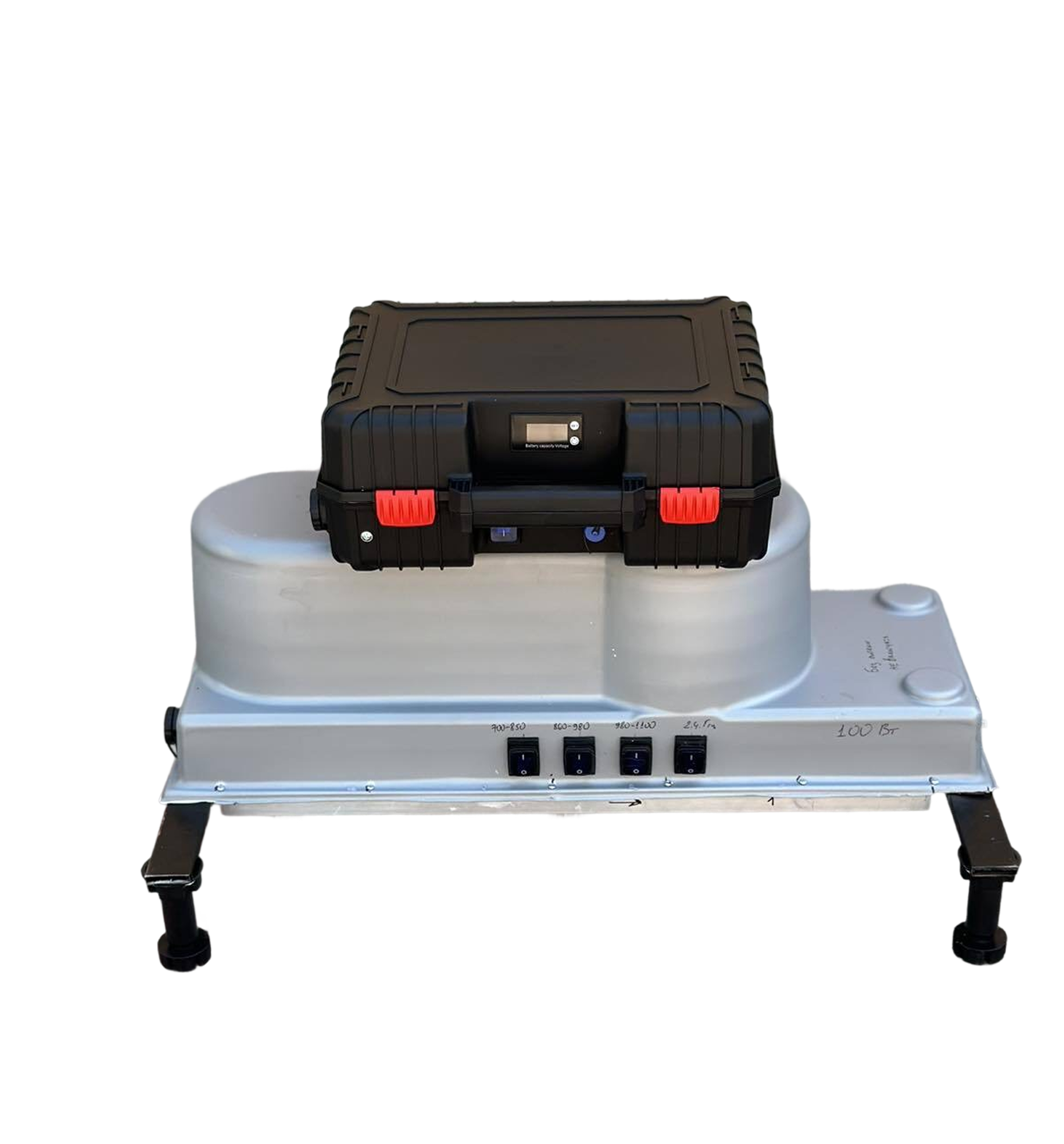

Horten-4 modules, 100.000 UAH

Frequency range, MHz	Power, W
700-830	50
830-960	50
960-1100	50
2400-2485	50

Horten-4 modules, 110.000 UAH

Frequency range, MHz	Power, W
300-400	50
400-500	50
500-600	50
700-1000	100

Horten-4 modules, 110.000 UAH

Frequency range, MHz	Power, W
200-300	50
300-400	50
400-500	50
500-600	50

Horten-4 modules, 110.000 UAH

Frequency range, MHz	Power, W
3100-3200	50
3200-3300	50
3300-3400	50
3400-3500	50

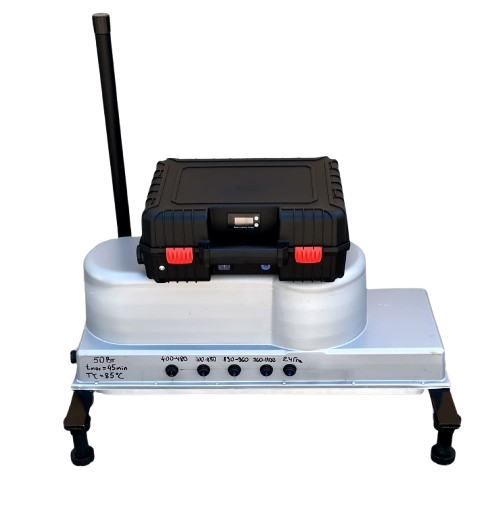

Horten-5 modules, 120.000 UAH

Frequency range, MHz	Power, W
400-480	50
700-830	50
830-960	50
960-1100	50
2400-2485	50

Horten-5 modules, 130.000 UAH

Frequency range, MHz	Power, W
200-300	50
300-400	50
400-500	50
500-600	50
600-700	50

Horten-5 modules, 140.000 UAH

Frequency range, MHz	Power, W
200-300	50
300-400	50
400-500	50
500-600	50
700-1000	100

Horten-5 modules, 130.000 UAH

Frequency range, MHz	Power, W
200-300	50
300-400	50
400-500	50
500-600	50
2400-2500	50

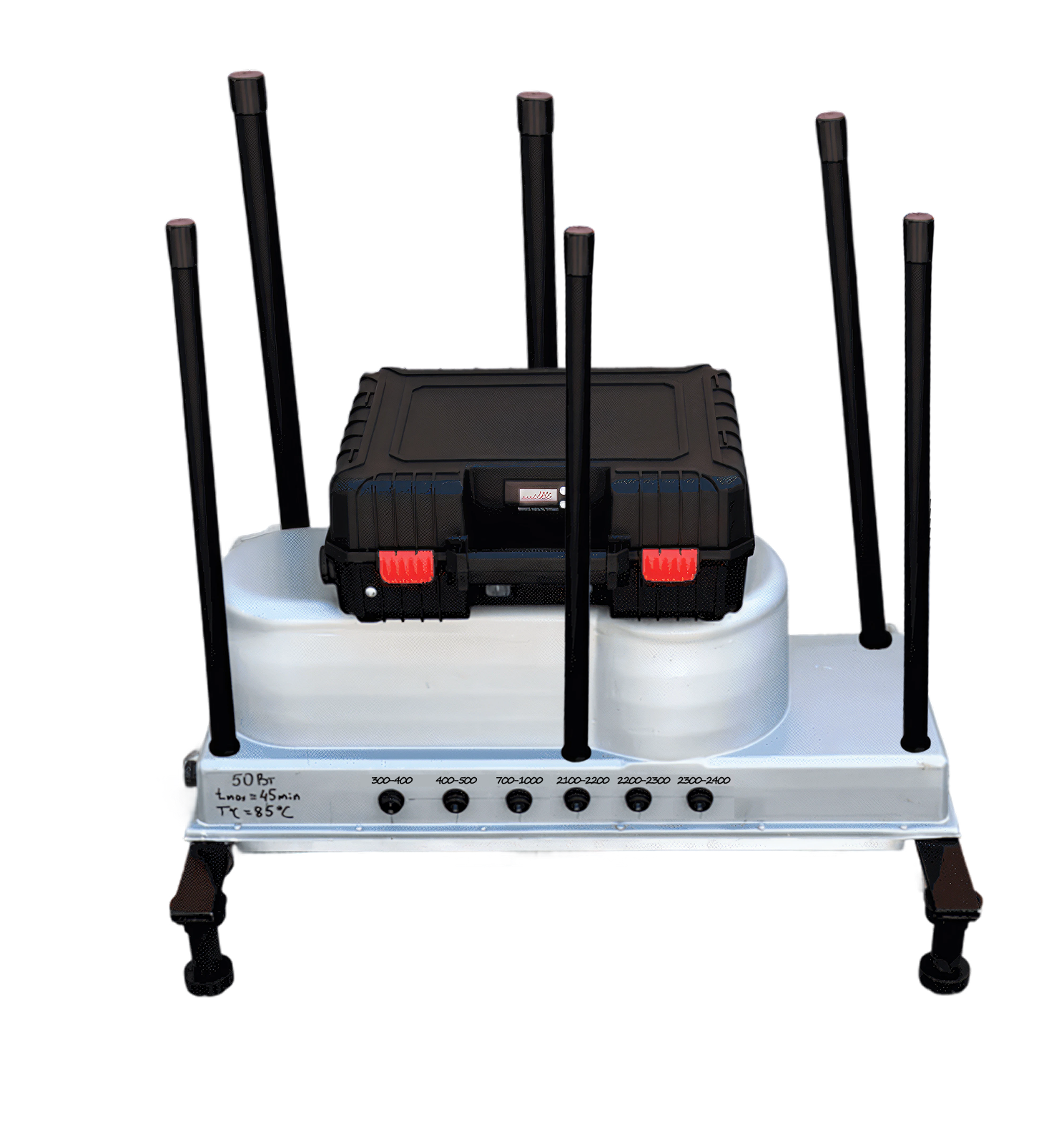

Horten-6 modules, 160.000 UAH

Frequency range, MHz	Power, W
200-300	50
300-400	50
400-500	50
500-600	50
700-1000	100
2400-2500	50

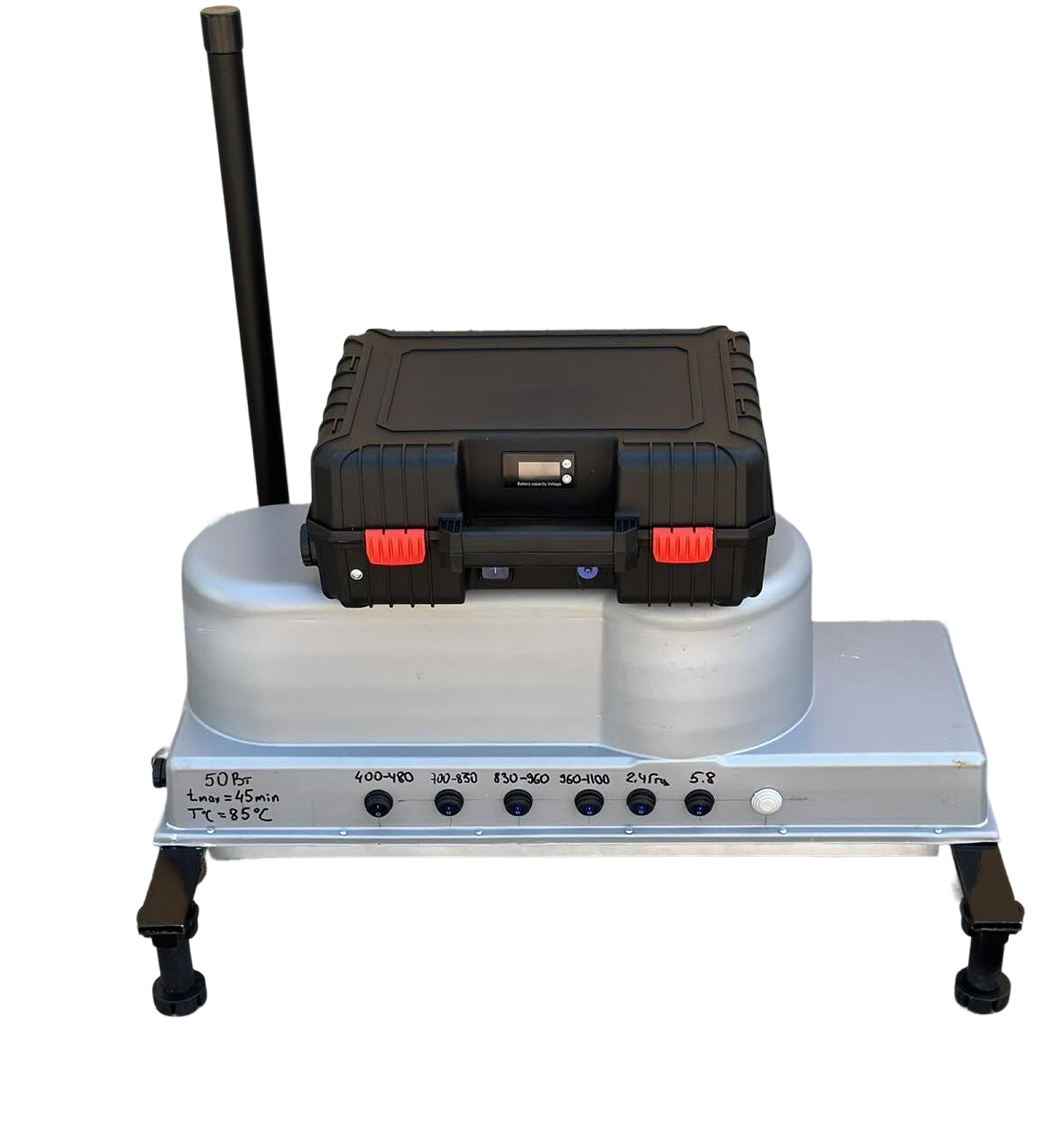

Horten-6 modules, 150.000 UAH

Frequency range, MHz	Power, W
400-480	50
700-830	50
830-960	50
960-1100	50
2400-2485	50
5727-5850	50

Horten-6 modules, 160.000 UAH

Frequency range, MHz	Power, W
200-300	50
300-400	50
400-500	50
500-600	50
1100-1200	50
1200-1300	50

Horten-6 modules, 150.000 UAH

Frequency range, MHz	Power, W
400-500	50
500-600	50
600-700 (300-400)	50
700-830	50
830-960	50
960-1100	50

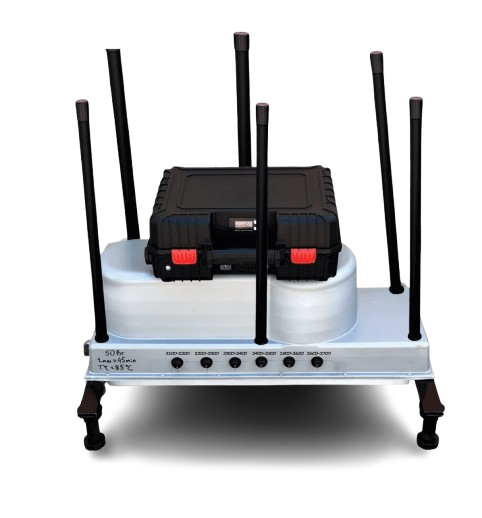

Horten-6 modules, 150.000 UAH

Frequency range, MHz	Power, W
2100-2200	50
2200-2300	50
2300-2400	50
2400-2500	50
2500-2600	50
2600-2700	50

Horten-6 modules, 160.000 UAH

Frequency range, MHz	Power, W
300-400	50
400-500	50
700-1000	100
2200-2300	50
2300-2400	50
2400-2500 (2500-2600 or 2100-2200)	50

Advantages of the еlectronic warfare REB-UA

The device automatically turns off after heating to 85℃, after a pause (5 minutes), turns on independently

Ability to increase/change frequencies in an existing system from 100 to 6300 MHz

Autonomous operation of the device is 60A-hours. One module uses 6A-hours. One devise has – 4-6 modules

All modules are equipped with a circulator, which additionally protects the operation of the jamming modules

The lithium battery used in the antidrone electronic warfare (EW) system does not drain the car battery

An anti-drone device for jamming drone signals is assembled in Ukraine. Own production of antennas

Specifications
Drone detection system composition

Specifications

Working distance: from 50 to 300 m (depending on the conditions of use).

Operating height: up to 50-150 meters.

Autonomous operation: from 2 to 4 hours (depending on the number of jamming modules turned on at the same time).

Total power: from 200 to 300 W.

Working readiness: immediate.

Сharging time 6-7 hours. The device can be charged from the mains and a generator.

Suitcase with electronics and batteries: 39×34×15, weight – 10 kg.

Block with antennas and jamming modules: 76×28 (with pipes 50)×25 (with legs 34), weight – 8 kg.

Drone detection system composition

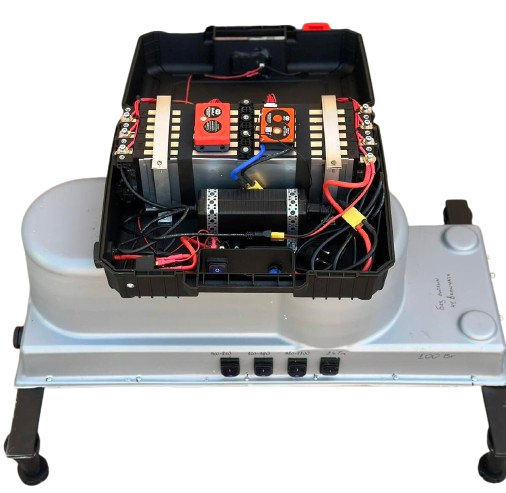

1. Suitcase with:

– battery and electronics,
– power cable (2m),
– charging 24V 10A 220W.

2. Block with antennas and jamming modules.

3. Device for indicating system operation.

4. Remote control button with a cable 5m. Works when used on a car or in a trench.

5. The antidrone electronic warfare (EW) is equipped with two types of antennas – clover and patch antennas. It’s possible to installing dipole antennas also.

6. The device is turned on using the remote switch button or the button on the suitcase.

Attention! Before you buy an antidrone electronic warfare (EW), you need to obtain complete information about the frequencies at which enemy drones fly using a spectrum analyzer. They use different frequencies. Incorrectly closed frequencies are a loss of personnel and a waste of money.

The principle of jamming fpv drone signals. Electronic warfare creates a dome with a radius of 50 to 300 meters, into which FPV drones can not fly.

The principle of jamming Mavic drone signals. This drone uses two frequencies (2400 MHz and 5800 MHz). It uses 2400 MHz frequency to release the bomb. The drone descends to the ground at a distance of approximately 50 meters. The drone operator must then aim the sight to reset. The electronic warfare jams the 2400 MHz signal and the drone automatically rises and switches to the 5800 MHz frequency. If this frequency is not closed, then the drone attempts to descend to reset again. These maneuvers lead to loss of battery charge and the operator is forced to return the Mavic to its position, while performing an arbitrary reset without a sight. It is recommended to cover two frequencies (2.4 GHz and 5.8 GHz) to block Mavic.

The method of using the antidrone electronic warfare (EW):

– in the trench by the front. The devise turns on when drone is detected and turns off manually after it is neutralized. The antidrone electronic warfare (EW) can started from the remote control or stationary buttons on the system.
– on a car/APC/tank. The unit with antennas is placed on the roof. The suitcase with the battery is placed in the vehicle.
